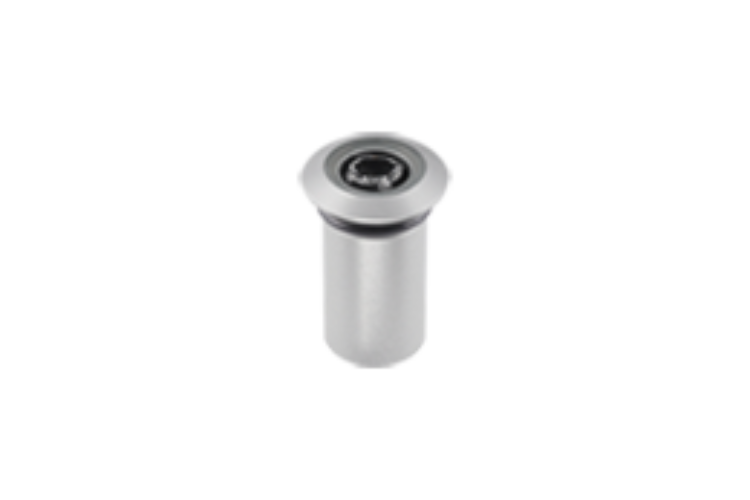

Caliber 25 XS

Caliber 25 XS is an extremely efficient miniature in-ground drive-over LED up- light with a height of only 35mm, designed for optical excellence and engineered for complete resilience. Caliber 25 XS offers a choice of four colour temperatures as standard (2200K, 2700K, 3000K and 4000K) and delivers 90CRI for excellent colour rendering, and with binning-free LEDs carefully selected from two-step Macadam’s ellipses, colour consistency is assured throughout the unonovesette portfolio.

.

Read more

Generate a product code

Colour Temp.
Optics
Finishing
Colour Temp.
  • 22 - 2200K
  • 27 - 2700K
  • 30 - 3000K
  • 40 - 4000K
Optics
  • Narrow - 10°
  • Wide - 40°
  • Satin - 180°
Finishing
  • 03 - Stainless steel AISI316L
  • 05 - Black anodized
  • 07 - Natural anodized aluminium
CXS.--.-.--
Copy to clipboard
Body
AISI316L / Aluminium
Finishes
AISI316L / black / natural
Installation
Housing box / Fixing Springs
Power Supply Cables
35 cm NS20N PCP 2x0,5 mm2
Power Supply
Costant Current 350 mA
Power Consumption
Max 1 Watt
Lumen Output
94 lm
Working Temperature
-20°C +45°C
IP Rating
IP68 (not for permanent immersion)
Insulation Class
III
Weight
50 g
Code #Caliber 25 XS Input Output IP Sizes Weight
ON/OFF PSU.CC.002 Max 9 100÷240V
50/60 Hz
350 mA IP67 22mm (height)
66mm (length)
50mm (width)
35g
PSU.CC.003 Max 12 100÷240V
50/60 Hz
350 mA IP20 19mm (height)
115mm (length)
34mm (width)
60g
PSU.CC.014 Max 6 100÷240V
50/60 Hz
350 mA IP20 21mm (height)
59mm (length)
31mm (width)
35g
PSU.CX.004 Max 12 100÷240V
50/60 Hz
350 mA IP20 22mm (height)
110mm (length)
52mm (width)
108g
Dimmable PSU.CX.001 Max 12 (1-10V / Push) 100÷240V
50/60 Hz
350 mA IP20 21mm (height)
103mm (length)
67mm (width)
135g
PSU.CC.015 Max 20 (DALI) 100÷240V
50/60 Hz
350 mA IP20 22mm (height)
124mm (length)
79mm (width)
150g
HB.005
Housing Box
ACC.049
Fixing springs
CV00037
Cable 5m
CV00040
Cavo 10m
CV00041
Cavo 15m
CV00042
Cavo 20m
CV00043
Cavo 25m
