Nilo

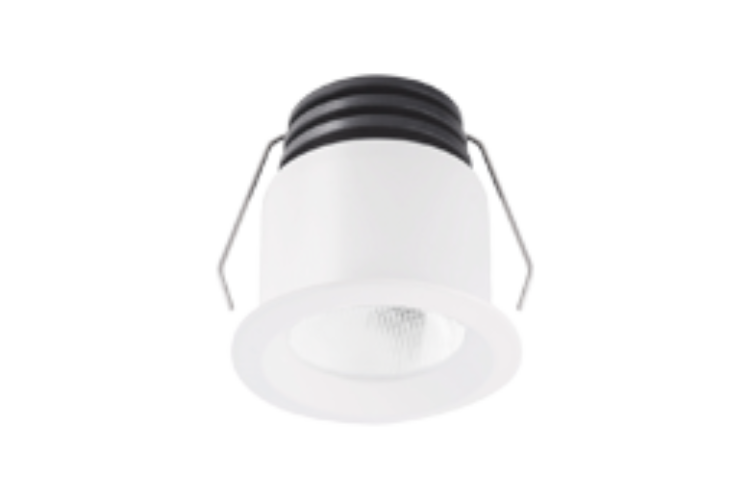

Nilo is a miniature recessed LED luminaire providing high performance discrete accent lighting from a compact source.
Nilo offers a choice of three colour temperatures as standard (2200K, 2700K, 3000K and 4000K) and delivers 90CRI for excellent colour rendering, with binning-free LEDs carefully selected from two-step Macadam’s ellipses. Colour consistency is assured throughout the unonovesette portfolio. Nilo is perfectly suitable for illumination of niches, under cabinets, under shelves or accent downlighting. The optional rotatable snoot offers the possibility to hide the light source from any viewing angle.

.

Read more

Generate a product code

Colour Temp.
Optics
Finishing
Colour Temp.
  • 22 - 2200K
  • 27 - 2700
  • 30 - 3000
  • 40 - 4000
Optics
  • Narrow - 10°
  • Medium - 23°
  • Wide - 43°
  • Flood - 70°
Finishing
  • 01 - White
  • 02 - Black
NIL.--.-.--
Copy to clipboard
Body
Aluminium
Finishes
Painted white / black
Installation
Fixing springs
Power Supply Cables
20 cm cable 2x0.5 mm2
Power Supply
500mA
Power Consumption
max. 2 Watt
Lumen Output
127lm
Working Temperature
-20°C + 45°C
IP Rating
IP40
Insulation Class
III
Weight
30g
Code #Nilo Input Output IP Sizes Weight
ON/OFF PSU.CX.003 Max 12 100÷240V
50/60 Hz
500mA IP20 21mm (height)
103mm (length)
67mm (width)
120g
PSU.CX.004 Max 9 100÷240V
50/60 Hz
500mA IP20 22mm (height)
111mm (length)
52mm (width)
108g
Dimmable PSU.CX.001 Max 12 (1-10V / Push) 100÷240V
50/60 Hz
500mA IP20 21mm (height)
103mm (length)
67mm (width)
120g
PSU.CX.002 Max 12 (DALI) 100÷240V
50/60 Hz
500mA IP20 21mm (height)
103mm (length)
67mm (width)
120g
PSU.CC.015 Max 20 (1-10V / DALI / Push) 100÷240V
50/60 Hz
500mA IP20 22mm (height)
124mm (length)
79mm (width)
140g
ACC.018
Snoot
