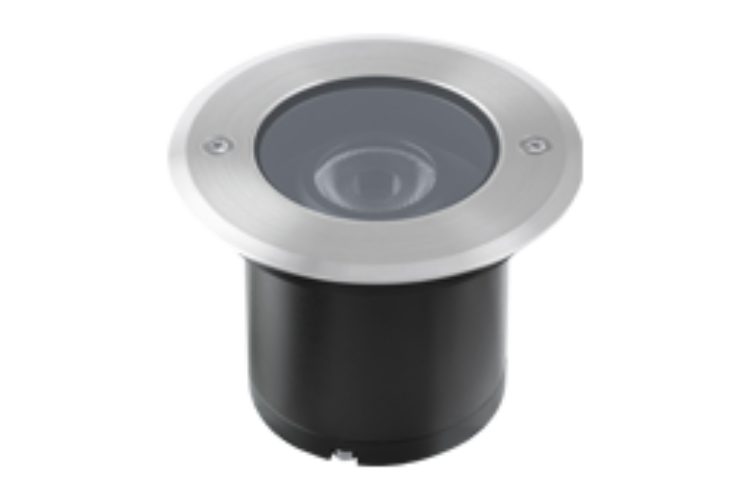

Caliber 120 D

Caliber 120 D is an extremely efficient compact in-ground directional drive-over LED up-light, offering 360° rotation and up to 15° tilt of the LED engine. Caliber 120 D is available in RGBW and three monochromatic colour temperatures as standard (2700K, 3000K and 4000K) and delivers 90CRI for excellent colour rendering. Caliber 120 D comes in AISI316L stainless steel or machined aged brass as standard finishes and other finishes are available on request. Available with a choice of three beam angles (10°, 35° and 50°).
A housing box is available for convenient ground installation.

Caliber 120 D delivers a lumen package of 720lm from 9W, and is rated A++ for energy efficiency. Constructed from AISI316L marine-grade stainless steel with a hard anodized aluminium heatsink, and ingress protected to IP68, Caliber 120 D renders an additional draining system as unnecessary. Caliber 120 D features the unonovesette Smart Shield system, complete with an integrated constant current driver, which allows the luminaire to be powered in parallel with a 24Vdc constant voltage power supply.

Read more

Generate a product code

Colour Temp.
Optics
Finishing
Colour Temp.
  • 27 - 2700K
  • 30 - 3000K
  • 40 - 4000K
  • FC - RGBW
Optics
  • Narrow - 10°
  • Medium - 35°
  • Wide - 50°
Finishing
  • 03 - Stainless steel AISI316L
  • 10 - Aged Brass
C120D.--.-.--
Copy to clipboard
Body
Stainless Steel AISI316L - Anodized aluminium 6026 / Machined aged brass - Anodized aluminium 6026
Finishes
Stainless Steel AISI316L / Aged solid brass
Installation
Housing box
Power Supply Cables
35 cm NS20N PCP 2x0,5 mm2 / 35 cm 8x0,22 mm² (RGBW)
Power Supply
24Vdc / Constant current 700mA (RGBW)
Power Consumption
5W / 9W
Lumen Output
515 lm / 730 lm (3000K)
Working Temperature
-20°C +50°C
IP Rating
IP68 (not for permanent immersion)
Insulation Class
III
Weight
900 g
Code #Caliber 120 D Input Output IP Sizes Weight
ON/OFF PSU.CX.004 Max 2 110÷240V
50/60 Hz
24Vdc - 20Watt IP20 22mm (height)
110mm (length)
52mm (width)
108g
PSU.CV.005 Max 2 90÷305V
47/63 Hz
24Vdc - 25 Watt IP67 32mm (height)
148mm (length)
40mm (width)
360g
PSU.CV.006 Max 6 90÷305V
47/63 Hz
24Vdc - 60 Watt IP67 32mm (height)
162mm (length)
43mm (width)
450g
PSU.CV.007 Max 8 90÷305V
47/63 Hz
24Vdc - 90 Watt IP67 36mm (height)
161mm (length)
61mm (width)
700g
PSU.CV.004 Max 10 90÷305V
47/63 Hz
24Vdc - 120Watt IP67 38,8mm (height)
220mm (length)
68mm (width)
1,12kg
Dimmable CGE.004 1-10V 24Vdc
24Vdc - 156Watt IP20 25mm (height)
45mm (length)
58mm (width)
40g
CGE.017- DALI 24Vdc
24Vdc - 156Watt IP20 25mm (height)
45mm (length)
58mm (width)
40g
CGE.017.IP - DALI 24Vdc
24Vdc - 156Watt IP67 25mm (height)
45mm (length)
58mm (width)
130g
CGE.020- DMX 24Vdc
24Vdc - 156Watt IP20 25mm (height)
45mm (length)
58mm (width)
40g
CGE.005 - DMX (RGBW) 12-48Vdc
350mA - 700mA IP20 62mm (height)
91mm (length)
71mm (width)
125g
HB.011
Housing Box
ACC.119
Honeycomb louver
CV00037
Cable 5m
CV00040
Cable 10m
CV00041
Cable 15m
CV00042
Cable 20m
CV00043
Cable 25m
