Caliber 25

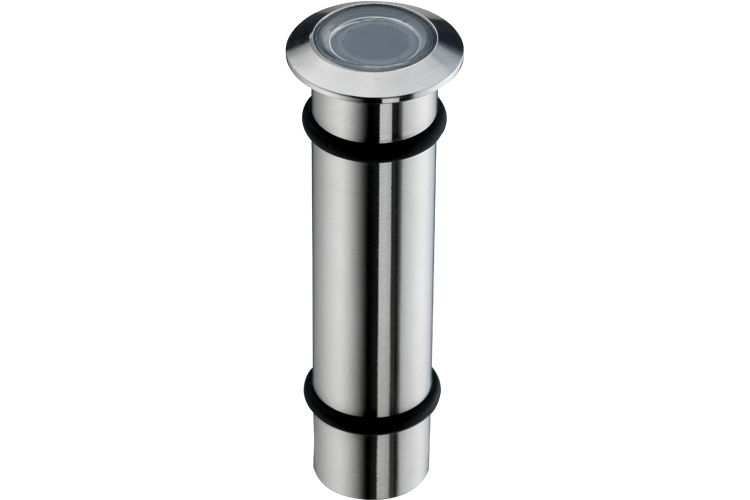

Caliber 25 is an extremely efficient miniature in-ground drive-over LED up-light, designed for optical excellence and engineered for complete resilience.
Caliber 25 features the unonovesette Smart Shield system, complete with an integrated constant current driver, which allows the luminaire to be powered in parallel with a 12Vdc up to 24Vdc constant voltage power supply. Easy dimming is supported via a 24Vdc dimmable power supply or by a DALI or DMX system
A housing box accessory is available for convenient ground installation.

With a recessed in-house designed PCB, Caliber 25 offers excellent glare control. Available with a choice of two beam angles (10 and 40) and satin. Delivered through integration of Total Internal Reflection (TIR) optical technology, which ensure maximum efficacy and complete control of light distribution. Caliber 25 delivers a lumen package of 127lm (3000K 90CRI) from 2W, and is rated A++ for energy efficiency.
Constructed from AISI316L marine-grade stainless steel, and ingress protected to IP68, Caliber 25 renders an additional draining system as unnecessary.

Generate a product code

• • •

Clear filters

Colour Temp.

Optics

Finishing

Colour Temp.

22 - 2200K
27 - 2700K
30 - 3000K
40 - 4000K

Optics

Narrow - 10°
Wide - 40°
Satin - 180°

Finishing

03 - Stainless steel AISI316L

C25.--.-.--

Copy to clipboard

Body

Stainless steel AISI316L

Finishes

Stainless steel AISI316L

Installation

Housing box / Fixing Springs

Power Supply Cables

35 cm NS20N PCP 2x0,5 mm2

Power Supply

12-24Vdc

Power Consumption

Max 2 Watt

Lumen Output

127lm

Working Temperature

-20°C +45°C

IP Rating

IP68 (not for permanent immersion)

Insulation Class

III

Weight

110 g

	Code	#Caliber 25	Input	Output	IP	Sizes	Weight
ON/OFF	PSU.CX.004	Max 8	110÷240V 50/60 Hz	24Vdc - 20Watt	IP20	22mm (height) 110mm (length) 52mm (width)	108g
	PSU.CV.005	Max 12	90÷305V 47/63 Hz	24Vdc -25Watt	IP67	32mm (height) 148mm (length) 40mm (width)	360g
	PSU.CV.006	Max 28	90÷305V 47/63 Hz	24Vdc -60Watt	IP67	32mm (height) 162mm (length) 43mm (width)	450g
	PSU.CV.007	Max 40	90÷305V 47/63 Hz	24Vdc -90Watt	IP67	36mm (height) 161mm (length) 61mm (width)	700g
Dimmable	CGE.004 1-10V		12 / 24 / 48Vdc	24Vdc	IP20	25mm (height) 45mm (length) 80mm (width)	100g
	CGE.017- DALI		12 / 24 / 48Vdc	24Vdc	IP20	25mm (height) 45mm (length) 80mm (width)	100g
	CGE.020- DMX		12 / 24 / 48Vdc	24Vdc	IP20	25mm (height) 45mm (length) 80mm (width)	100g
