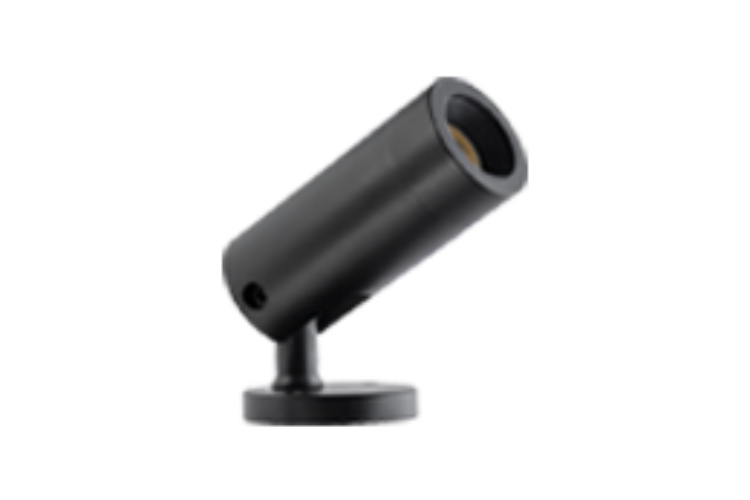

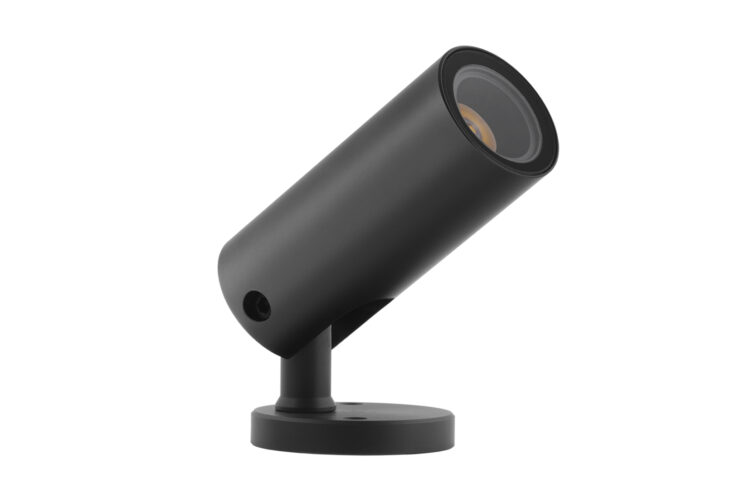

Vario 40

Vario 40 is an extremely efficient compact LED projector, designed for optical excellence and engineered for complete resilience. Vario 40 offers a choice of four colour temperatures as standard (2200K, 2700K, 3000K and 4000K) and delivers 90CRI for excellent colour rendering, and with binning-free LEDs carefully selected from two-step Macadam’s ellipses, colour consistency is assured throughout the unonovesette portfolio. With a deep recess of the in- house designed PCB, Vario 40 offers excellent glare control.

Available with a choice of five beam angles (10°, 23°, 43°, 10°x40° and 40°x10°) delivered through integration of Total Internal Reflection (TIR) optical technology, which ensure maximum efficacy and complete control of light distribution. Vario 40 delivers a lumen package of 210lm from 2,6W and 283lm from 3,6W and is rated A++ for energy efficiency. Constructed from hard anodized aluminium or machined aged solid brass, and ingress protected to IP66, Vario 40 can be installed in any harsh environment. Vario 40 features the unonovesette Smart Shield system, complete with an integrated constant current driver, which allows the luminaire to be powered in parallel with 24Vdc constant voltage power supply. Easy dimming is supported via a 0/1-10V, DALI or DMX control gear. Factory- sealed options include a honeycomb louver for glare control. Vario 40 features an optional asymmetrical snoot and can either be installed on a base, ground spike or with a tree strap.

Read more

Generate a product code

Colour Temp.
Optics
Finishing
Colour Temp.
  • 22 - 2200K
  • 27 - 2700K
  • 30 - 3000K
  • 40 - 4000K
Optics
  • Narrow - 10°
  • Medium - 23°
  • Wide - 43°
  • Elliptical - 10°x40°
  • Elliptical - 40°x10°
Finishing
  • 05 - Black anodized aluminium
  • 07 - Natural anodized aluminium
  • 10 - Aged brass
V40.--.-.--
Copy to clipboard
Body
Anodized aluminium 6026 / Machined aged brass
Finishes
Natural anodized /Black anodized /Aged solid brass
Installation
Surface mounted / Spike / Tree strap
Power Supply Cables
35 cm NS20N PCP 2x0,5 mm2
Power Supply
24Vdc
Power Consumption
2,6 Watt / 3,6 Watt
Lumen Output
210 lm / 283 lm (3000K)
Working Temperature
-20°C +50°C
IP Rating
IP66
Insulation Class
Class III
Weight
270 g
Code #Vario 40 Input Output IP Sizes Weight
ON/OFF PSU.CX.004 Max 4 110÷240V
50/60 Hz
24Vdc - 20 Watt IP20 22mm (height)
110mm (length)
52mm (width)
108g
PSU.CV.005 Max 2 90÷305V
47/63 Hz
24Vdc - 25 Watt IP67 32mm (height)
148mm (length)
40mm (width)
360g
PSU.CV.006 Max 6 90÷305V
47/63 Hz
24Vdc - 60 Watt IP67 32mm (height)
162mm (length)
43mm (width)
450g
PSU.CV.007 Max 8 90÷305V
47/63 Hz
24Vdc - 90 Watt IP67 36mm (height)
161mm (length)
61mm (width)
700g
Dimmable CGE.004 1-10V 24Vdc
24Vdc - 156Watt IP20 25mm (height)
45mm (length)
58mm (width)
40g
CGE.017- DALI 24Vdc
24Vdc - 156Watt IP20 25mm (height)
45mm (length)
58mm (width)
40g
CGE.020- DMX 24Vdc
24Vdc - 156Watt IP20 25mm (height)
45mm (length)
58mm (width)
40g
ACC.108
Honeycomb louver
ACC.011.05
Snoot black anodized
ACC.011.10
Snoot aged brass
ACC.106.05
Snoot black anodized
ACC.106.10
Snoot aged brass
ACC.075.02
Ground spike black RAL 9005
ACC.075.10
Ground spike aged brass
ACC.076
Base
ACC.082
Tree strap
CV00037
Cable 5m
CV00040
Cable 10m
CV00041
Cable 15m
CV00042
Cable 20m
CV00043
Cable 25m
